Glass Mosaic Pool

Click on images to enlarge

"As a developer and licensed engineer, I don't mess around and cut corners...we only approve use of the best pool waterproofing and setting materials, thus LATICRETE is our first choice for demanding applications such as continuously submerged water conditions such as glass tile swimming pools.

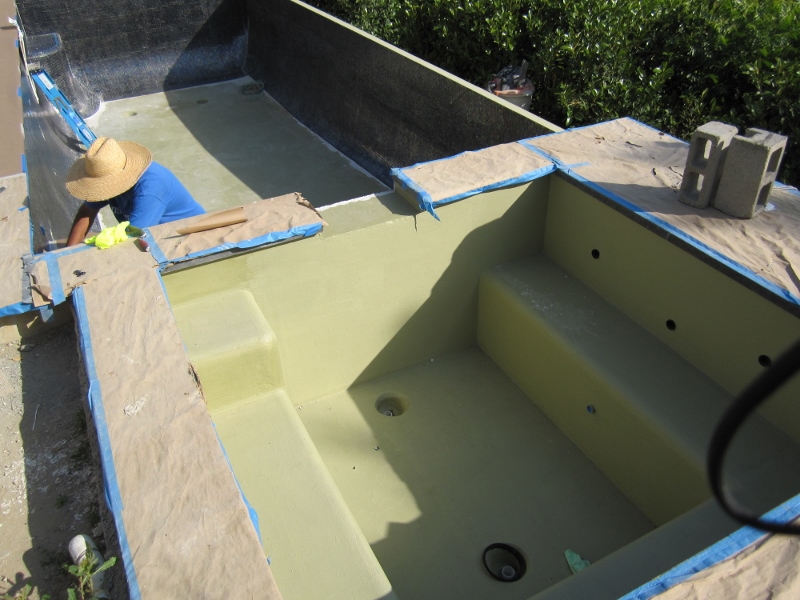

Attached are a couple pics of the last pool (residential hillside all glass tile infinity edge swimming pool and spa) we did at different stages. We used the LATICRETE Tile Swimming Pools, Fountains and Spas Technical Design Manual as our source for specifications and details.

We first used a cement based waterproofer for negative waterproofing, then 254 Platinum bond coat with mortar bed to render/float shotcrete shell to accept tile. After that everything is LATICRETE....another very thin 254 Platinum bond coat to fill voids in mortar bed, then HYDRO BAN
® liquid waterproofing membrane, 254 Platinum for paper faced glass tile, SPECTRALOCK® Pro epoxy grout and finally LATASIL™ silcone sealant for expansion joints and penetrations. Needless to say it quite a time consuming and expensive process.
