Linear Drains Detailed

Click on images to enlarge
Linear Drains
Instead of the use of a traditional PVC membrane or copper or lead metal pan in a shower this modern Stainless Steel metal flanged drain design is engineered to work with LATICRETE HYDRO BAN seamless liquid applied waterproofing membrane.

After the drain is installed in place a double layer of HYDRO BAN liquid is applied to provide a seamless watertight installation.  The HYDRO BAN liquid waterproofing membrane is applied to the walls and floors of the shower. It bonds directly to the metal drain body.
Fast, easy and productive to install.

Watch the video on LATICRETE HYDRO BAN Linear Drains.

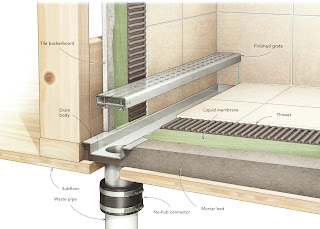

Top image used under the Fair Use doctrine as commentary, news reporting, research & teaching. Read the entire article regarding Linear Drains for Custom Showers in the Fall/Winter 2012 issue of Fine Homebuilding magazine.
